Double Roller Extruding Tech Sandwich Panel Making Machine , Magnesium Oxide Wall Panel Equipment

Brand Name : chuangxin

Model Number : XD-DB

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : negotiation

Payment Terms : L/C, T/T

Supply Ability : 50 Sets per year

Delivery Time : 30 working days after received your payment

Packaging Details : Packed in carton firstly,and then reinforced with wooden case for outer packing

Product Name : Building Moulding Board machine

Production capacity : 1500 Sheets

Warranty : 1 years

Standard : CE

type : free standing

Contact Now

Double Roller Extruding Tech Sandwich Panel Making Machine , Magnesium Oxide Wall Panel Equipment



Wall Board Machine   ,Mgo Board equipment ,board making machine



Specifications



Required Raw Material
Magnesium Oxide Wall board is made of sawdust or straw (rice hulls), or any kind of crop straw and inorganic material (such as talcum powder and powder coal ash) after special technology. So this project has low production cost, small investment and fast effectiveness.
Wall Board Performance

1
Air-dry density
≤ (Standard index)50kg/m2
(Test Value) 30.0kg/ m2
2
Drying shrinkage rate of the board
≤0.08%
0.015%
3
Anti-breaking load
≥1400N
5640N
4
Anti-impact
No breakage phenomenon such as cracking after three impacts
No breakage phenomenon such as cracking after three impacts
5
Thermal resistance of main section  T=90mm
≥1.35m2.k/w
≥1.36m2.k/w
6
Thermal bridges area ratio
≤8%
2.22%
7
Sound reduction Index

36dB
8
Radioactivity

None

Project Feature
1. The source of the production raw materials is widely with no regional restriction.
2. The equipment has high automatization degree, simple production technology, low labor intensity and production line, and there is no noise and three-wastes (waste water, waste gas and waste residue) during the production.
3. Low production energy consumption. With the influence of chemical reaction, it can meet the requirements about production technology without high temperature and high pressure.



Required Raw Material
Magnesium Oxide Board is made of filling materials, such as sawdust or all kinds of crushed plant straw (you can select any one kind ) and several chemical raw materials which are token as modified material after special technology.
Technical Index for finished board
1. Oxygenic index%: 90
2. Level combustion: SO
3. Vertical combustion: SO
4. Water content rate: 10.9%
5. Capacity: 1.15g/cm3
6. Static bending intensity: 169.46Mpa
7. Density: T/ m3  1.13
8. Water resistance: Without chalking for 24 hours and there is no change on surface
9. No Three-wastes (waste water, waste gas and waste residue), no pollution and environmental protection

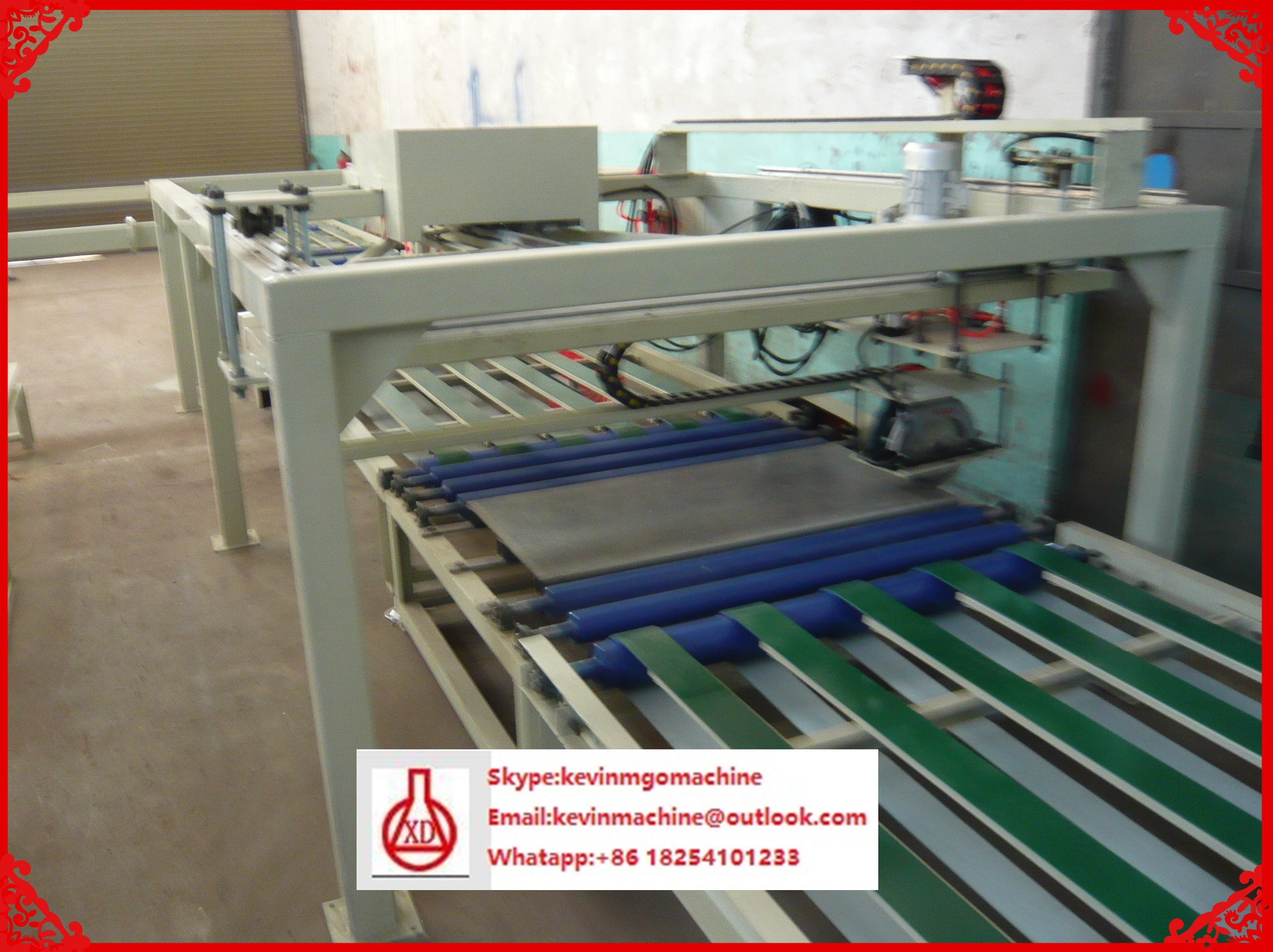

Structure Principle for Machine
Magnesium Oxide Board Machine with fashionable design, reasonable structure, stable running manufactured board of even thickness in large production once through double- roller-extruding technology. This production line is equipped with shaking device which remove inside and outside air bubble, so our board is more compact. In addition, we use the no-woven cloth as the separating film to increase the toughness and strength of the board. The machine can be adjusted arbitrarily, and then produce the board with the thickness of 2-60mm, the biggest width of 1, 300mm and unlimited length. So you can adjust the thickness of board at will.


6 Freezing resistance According to the National standard GB8041 tested- after 25 times Cycliccrackingno break and layer appear Meet the National standard GB804

Required Raw Material

wheat straw board is made of filling materials,

such as sawdust or all kinds of crushed plant

straw (you can select any one kind) and several

chemical raw materials which are token as

modified material after special technology.

Technical Index for finished board

1. Oxygenic index%: >90

2. Level combustion: SO

3. Vertical combustion: SO

4. Water content rate: 10.9%

5. Capacity: 1.15g/cm3

6. Static bending intensity: 169.46Mpa

7. Density: T/ m3  1.13

8. Water resistance: Without chalking for 24

hours and there is no change on surface

9. No “Three-wastes” (waste water, waste gas

 and waste residue), no pollution and

environmental protection

Structure Principle for Machine

wheat straw baord machine with fashionable

design, reasonable structure, stable running

manufactured board of even thickness in large

production once through double- roller-extruding

 technology. This production line is

equipped with shaking device which remove

inside and outside air bubble, so our board is

more compact. In addition, we use the no-woven

 cloth as the separating film to increase the

 toughness and strength of the board. The

machine can be adjusted arbitrarily, and then

 produce the board with the thickness of

2-60mm, the biggest width of 1,300mm and

unlimited length. So you can adjust the thickness

of board at will

                 Double Roller Extruding Tech Sandwich Panel Making Machine , Magnesium Oxide Wall Panel EquipmentDouble Roller Extruding Tech Sandwich Panel Making Machine , Magnesium Oxide Wall Panel Equipment
